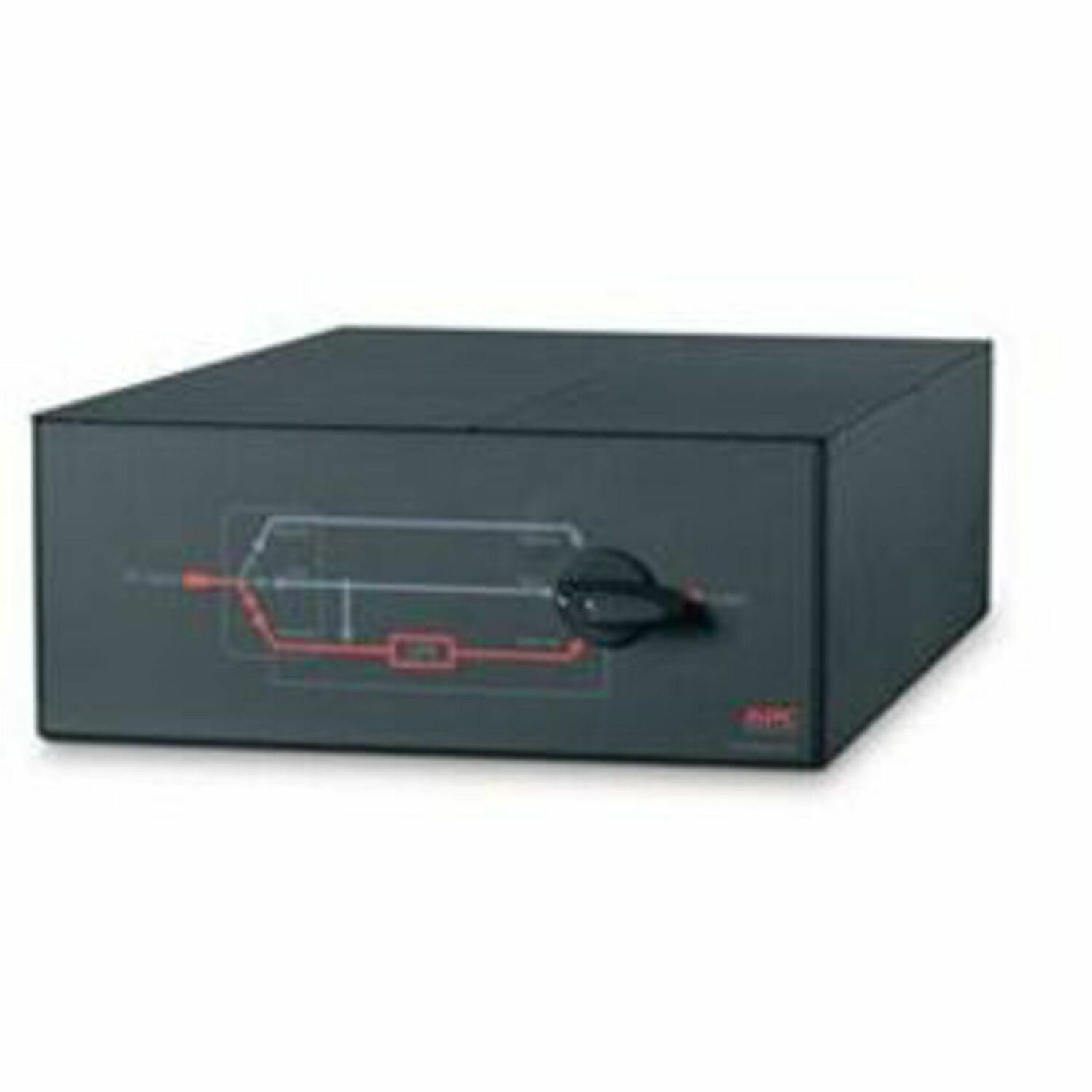

APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel

Item #: APWSBP16KRMP4U
Thumbnail image 1 of 9
Thumbnail image 2 of 9
Thumbnail image 3 of 9
Thumbnail image 4 of 9
Thumbnail image 5 of 9
Thumbnail image 6 of 9
Thumbnail image 7 of 9
Thumbnail image 8 of 9
Thumbnail image 9 of 9
APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U APWSBP16KRMP4U
$2,204.94 / Each
Ships in 3-5 Bus Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SBP16KRMP4U
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
19" Rack Mountable 100A Maintenance Bypass Panel
Marketing Information

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

Packaged Quantity
1 Each
Product Type
Bypass Panel
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Plug/Connector Type
  • Hard Wire 3-wire
  • Hard Wire 4-wire
Receptacles
6 x NEMA L14-30R
Protection Type
Overload
Power Description
Load Capacity (VA)
20 kW
Input Voltage
208 V AC
Output Voltage
  • 200 V AC
  • 208 V AC
Current
100 A
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Mounting Location
Front
Mounting Preference
Lower
Rack Height
4U
Height
7"
Width
17"
Depth
26.5"
Weight (Approximate)
51.10 lb
Miscellaneous
For Country/Region
United States
Package Contents
  • 19" Rack Mountable 100A Maintenance Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual
    • Certifications & Standards
    CSA|GOST
    Product Take Back Program
    No
    Mercury Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP16KRMP4U_ROHS_DECLARATION&p_FileName=SBP16KRMP4UKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764478&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764478&lang=en-us
    REACH free of SVHC
    Yes
    Toxic Heavy Metal Free
    Yes
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    2 Year
