Schneider Electric SA

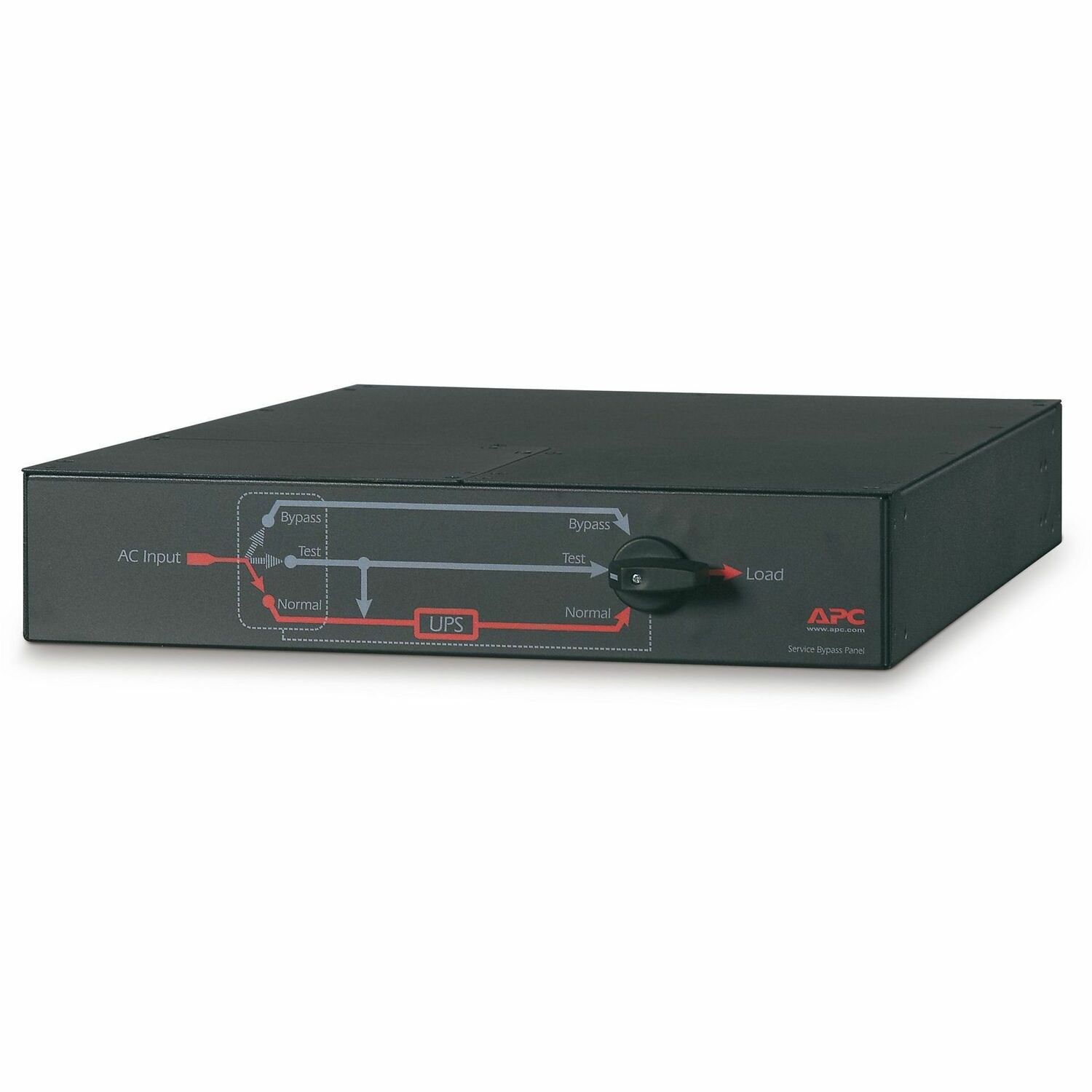

APC by Schneider Electric 19" Rack Mountable 24A Maintenance Bypass Panel

Item #: APWSBP5000RMT2U
Thumbnail image 1 of 6
Thumbnail image 2 of 6
Thumbnail image 3 of 6
Thumbnail image 4 of 6
Thumbnail image 5 of 6
Thumbnail image 6 of 6
APWSBP5000RMT2U APWSBP5000RMT2U APWSBP5000RMT2U APWSBP5000RMT2U APWSBP5000RMT2U APWSBP5000RMT2U
$1,173.24 / Each
Ships in 3-5 Bus Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
2 x NEMA L6-20R, 2 x NEMA L6-30R - 5000 W - 200 V AC, 208 V AC - 24 A, 24 A, 24 A
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SBP5000RMT2U
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information

The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.

Packaged Quantity
1 Each
Product Type
Bypass Panel
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Plug/Connector Type
NEMA L6-30P
Receptacles
  • 2 x NEMA L6-20R
  • 2 x NEMA L6-30R
Protection Type
Overload
Cord Length
10 ft
Power Description
Load Capacity (VA)
5000 W
Input Voltage
  • 200 V AC
  • 208 V AC
Output Voltage
  • 200 V AC
  • 208 V AC
Current
24 A
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Mounting Location
Front
Mounting Preference
Lower
Rack Height
2U
Height
3.5"
Width
17"
Depth
26"
Weight (Approximate)
30.07 lb
Miscellaneous
For Country/Region
United States
Package Contents
  • 19" Rack Mountable 24A Maintenance Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual
    • Certifications & Standards
    CSA|GOST
    Product Take Back Program
    No
    Mercury Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP5000RMT2U_ROHS_DECLARATION&p_FileName=SBP5000RMT2UKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764532&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764532&lang=en-us
    REACH free of SVHC
    Yes
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    2 Year
