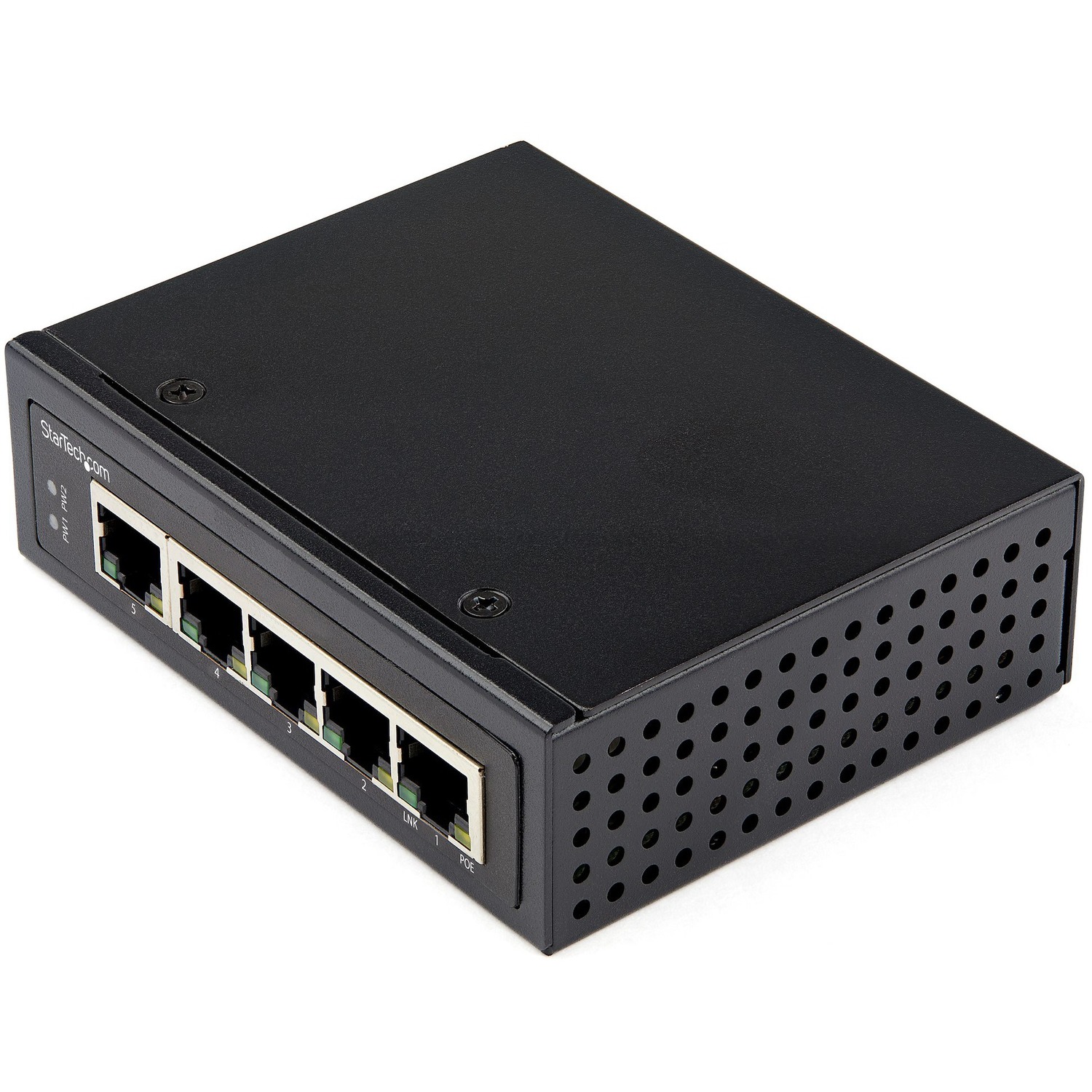

StarTech.com Ethernet Switch

Item #: STCIESC1G50UP
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
STCIESC1G50UP STCIESC1G50UP STCIESC1G50UP STCIESC1G50UP
$441.74 / Each
Ships in 6-10 Bus Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 126 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable - 2 Year Limited Warranty
  • Effectively increases available bandwidth on your network
  • Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
  • PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
IESC1G50UP
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Ethernet Switch
Marketing Information

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Ethernet Switch
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Interfaces/Ports
Total Number of Network Ports
5
Network (RJ-45)
Yes
Port/Expansion Slot Details
  • 4 x Gigabit Ethernet PoE+
  • 1 x Gigabit Ethernet Network
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Networking Standards
  • IEEE 802.3
  • IEEE 802.3at
  • IEEE 802.3x
Management & Protocols
Manageable
No
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
120 W
Power Source
PoE+
Power Consumption
126 W
Plug/Connector Type
Terminal Block
Physical Characteristics
Product Material
Steel
Form Factor
  • Wall Mountable
  • DIN Rail Mountable
Height
1.3"
Width
3.2"
Length
4.1"
Weight (Approximate)
5.30 oz
Miscellaneous
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
2 Year
