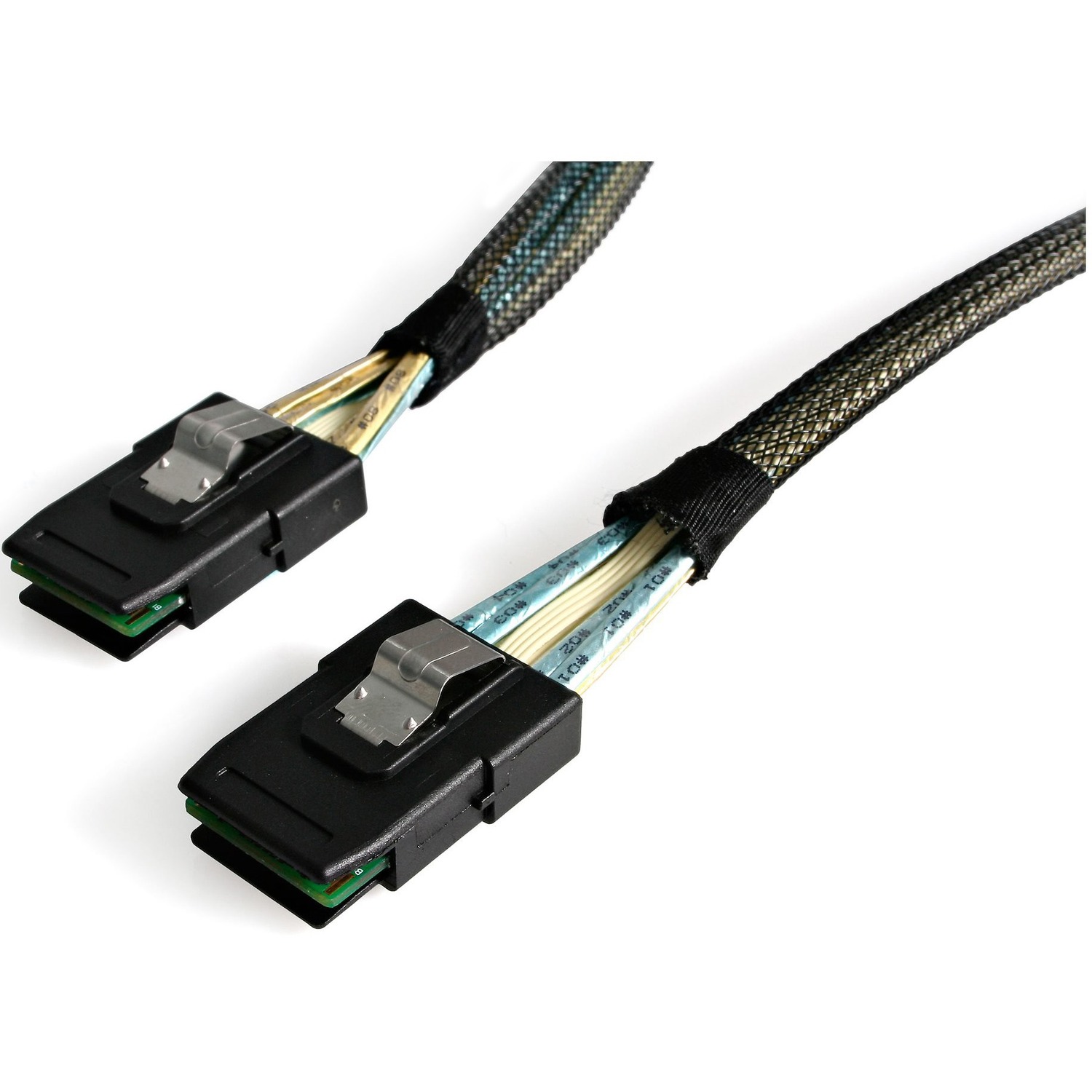

StarTech.com 50cm Mini-SAS Cable SFF-8087 To SFF-8087

Item #: STCSAS878750
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
$29.92 / Each
Packaging: 1 Each
Ships in 6-10 Bus Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
1.64 ft Mini-SAS Data Transfer Cable for SAS Controller, Backplane, Server, Workstation, Desktop Computer, Network Device - First End: 1 x 36-pin SFF-8087 Mini-SAS - Second End: 1 x 36-pin SFF-8087 Mini-SAS - 30 AWG - Black - 1 Each
  • Dual SFF-8087 Internal Mini-SAS Plugs
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
SAS878750
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
50cm Mini-SAS Cable SFF-8087 To SFF-8087
Marketing Information
The SAS878750 0.5-meter Internal Mini-SAS cable (with Sidebands) features two SFF-8087 connectors, helping you transmit, manage and protect critical data and digital content.Designed to provide durable connectivity for high-performance networks, servers, workstations and desktops, this Mini-SAS cable is backed by StarTech.com's Lifetime Warranty. More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Data Transfer Cable
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Cable Type
Mini-SAS
Cable Length
1.64 ft
Connector Type on First End
SFF-8087 Mini-SAS
Connector on First End Details
1 x 36-pin SFF-8087 Mini-SAS
Connector Type on Second End
SFF-8087 Mini-SAS
Connector on Second End Details
1 x 36-pin SFF-8087 Mini-SAS
Conductor
Copper
Device Supported
  • SAS Controller
  • Backplane
  • Server
  • Workstation
  • Desktop Computer
  • Network Device
American Wire Gauge
30 AWG
Physical Characteristics
Color Family
Black
Product Color
Black
Jacket Material
Polyvinyl Chloride (PVC)
Weight (Approximate)
0.07 lb
Miscellaneous
Additional Information

Hood:

  • Nylon

P.C.B:

  • FR4, 4 Layers

Latch:

  • Stainless Steel

Capacitance:

  • 49pF/ M Nominal

Prop Delay:

  • 4.9pF/ M Nominal

Skew (within pair):

  • <10ps/ 1M (TDT method drains grounded, 3M sample)

Attenuation:

  • 3.00 dB/M @ 4.50 GHz
Country of Origin
China
Lifetime
